Standard Bowling Lane Dimensions: A 2026 Guide for Architects & Builders

Flying Bowling offers the definitive 2026 guide on standard bowling lane dimensions. Architects & builders: what is the size of the bowling lane you need? Get precise, up-to-date specifications and expert insights for flawless project planning. Ensure perfection from design to construction.

Author

Flying Bowling - Flying Founder
Jackson Qin

Introduction

When planning a new entertainment center, one of the first questions architects and investors ask is: "How much space do I need for a bowling lane?"

While most people know the "60-foot rule" for the playing area, the actual construction footprint is significantly larger. Ignoring the space needed for the pinsetter machines (backend) or the seating area can lead to costly design errors.

As a manufacturer of professional bowling equipment, Flying Bowling provides the precise dimensions you need to plan your facility accurately.


1. The "Official" Specifications (Quick Reference Table)

The following dimensions strictly adhere to USBC (United States Bowling Congress) and IBF (International Bowling Federation) standards.

Measurement Zone Imperial (Feet/Inches) Metric (Meters)
Lane Width (Single) 41.5 inches 1.05 meters
Lane Width (Pair + Return) ~11.5 feet ~3.45 meters
Lane Length (Foul Line to Headpin) 60 feet 18.29 meters
Approach Length (Minimum) 15 feet 4.57 meters
Pin Deck (Pinsetter Area) ~3 feet ~0.91 meters
Gutter Width 9.25 inches 23.5 cm

Standard bowling lane dimensions side view diagram


2. The Real Construction Footprint (What Builders Need to Know)

If you are building a venue, you cannot just plan for 60 feet. You must account for the Total Length of the system.

A. The Approach Area (Front)

Players need space to walk up and deliver the ball.

  • Standard: 15 feet (4.57m).

  • Pro Tip: We recommend adding an extra 1-2 feet for a "concourse" area to separate players from spectators.

B. The Playing Zone (Middle)

This is the oiled surface where the ball travels.

  • Length: Exactly 60 feet (18.29m) from foul line to the No. 1 pin.

  • Tolerance: Professional installation requires leveling to within 40/1000th of an inch.

C. The Pinsetter & Service Aisle (Back)

Behind the pins, you need space for the machine itself and a walkway for technicians to perform maintenance.

  • String Pinsetters: Require less depth (approx. 4-6 feet total).

  • Traditional Machines: May require deeper service aisles.

  • Minimum Backend Space: Plan for at least 6-8 feet (2-2.5m) behind the pin deck.

Total Length Calculation:

For a fully functional lane, your building needs a clear length of approximately 83 - 85 feet (25.5 - 26 meters), excluding the seating area.


3. Width Considerations: Why We Install in Pairs

Bowling lanes are almost always installed in pairs (two lanes sharing one ball return system).

  • Single Lane Width: 41.5 inches.

  • The "Common" Wall: Lanes are separated by division caps.

  • Total Width for a Pair: Including the ball return capping, a standard pair requires a rough opening of 11 feet 6 inches (3.5 meters).

Planning Tip: If you want to build a 12-lane center, you are essentially installing 6 pairs.

Calculation: 6 pairs x 3.5m = 21 meters (approx. 69 feet) of continuous width.

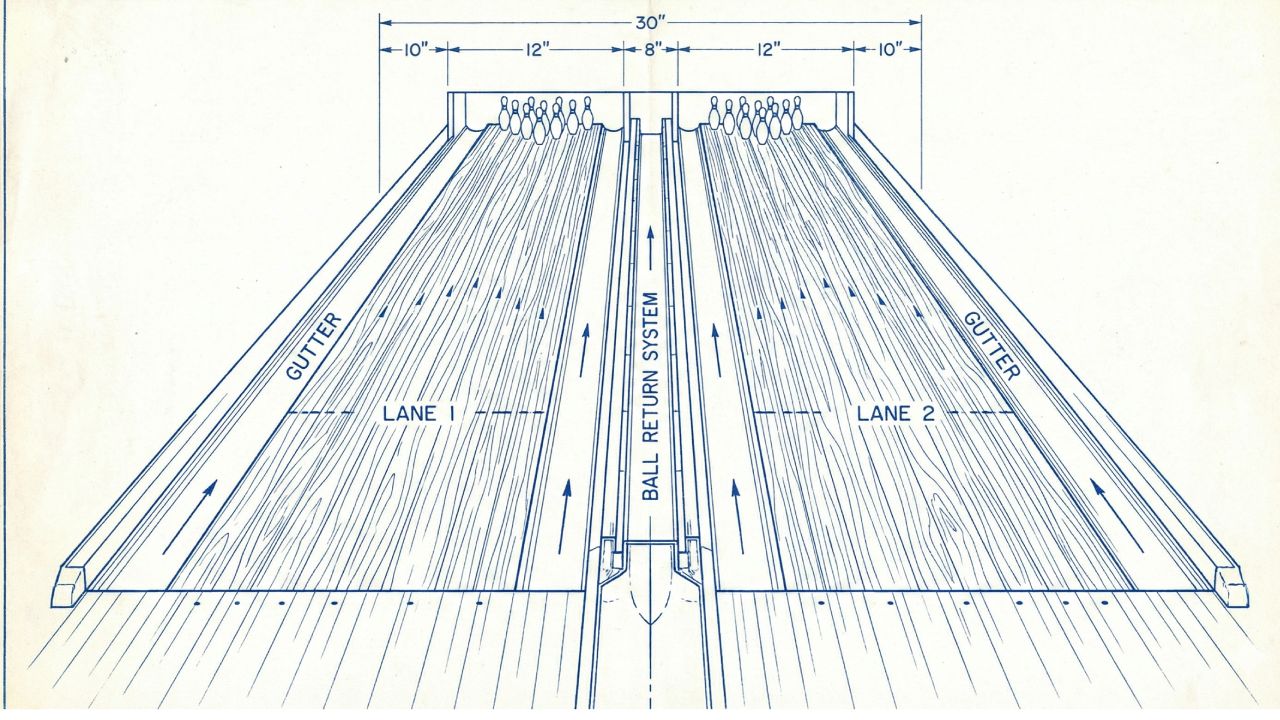

Width of standard bowling lane pair dimensions.


4. String Pinsetters: Saving Space

One reason String Pinsetters are becoming the standard for new entertainment centers is their compact footprint.

Unlike massive free-fall machines, string pinsetters have a smaller profile, allowing you to fit lanes into buildings with:

  • Lower ceiling heights (minimum 9-10 feet).

  • Shorter overall lengths (saving 2-3 feet in the service aisle).


5. FAQ: Common Layout Questions

Q: How much ceiling height do I need?

A: We recommend a clear height of 10 to 12 feet (3-3.6m). This allows for comfortable air circulation and the installation of overhead scoring monitors.

Q: Can I shorten a standard lane?

A: For official competition, no. However, for residential or "Duckpin" social gaming, Flying Bowling can manufacture custom lengths to fit smaller venues.

Contact Us for a Custom Alley Plan
