How Long Is a Bowling Lane? Complete Dimensions & USBC Standards Guide

For the casual enthusiast, a bowling lane is simply a wooden path leading to ten pins. For the competitive bowler, the architect, or the alley proprietor, the lane is a precise grid of geometry, physics, and strict regulation. Understanding standard bowling lane dimensions is not merely about knowing a single number; it is about grasping the anatomy of the playing field that dictates every hook, slide, and strike.

Whether you are calculating entry angles for a perfect game or drafting blueprints for a home installation, precision is non-negotiable. This guide provides a definitive breakdown of USBC bowling lane specifications, covering everything from the bowling approach length to the mechanics hidden behind the pin deck.

The Quick Answer: Official Bowling Lane Length

When asked about the length of a lane, the most common answer is "60 feet." While this is the golden number for gameplay, it is only one component of the total linear footprint required for a functional lane.

The 60-foot rule: Distance from foul line to the No. 1 pin

According to the United States Bowling Congress (USBC), the governing authority for the sport, the distance from foul line to head pin (the No. 1 pin) must be exactly 60 feet (18.29 meters). This measurement is taken from the lane-side edge of the foul line to the center of the spot where the No. 1 pin stands.

This 60-foot stretch is the primary battlefield. It is where the oil pattern is laid down, where the ball transitions from skid to hook to roll, and where the visual targeting markers are placed. Any deviation in this length, even by an inch, would fundamentally alter the physics of ball reaction and scoring averages.

Total length vs. playable length: Why you need more than 60 feet

While the ball travels 60 feet to hit the pins, the physical lane does not stop there. If you are planning construction, relying on the 60-foot figure will result in a facility that cannot house the machinery or the players.

• Playable Surface: 60 feet (Foul line to Head pin) + approx. 34 inches (Pin Deck).
• Total "Lane" Material: Roughly 62 feet, 10 3/16 inches.
• Total Installation Footprint: When you add the approach area, the pinsetter machine space, and the service aisle, the total length required balloons to 85 to 100 feet.

USBC (United States Bowling Congress) official citations

The integrity of the sport relies on these measurements being uniform worldwide. The USBC Equipment Specifications and Certifications Manual mandates these dimensions with incredibly tight tolerances. For instance, the cross-tilt of a lane (its side-to-side levelness) cannot exceed 40/1000ths of an inch. These rigorous standards ensure that a 300 game bowled in New York requires the same skill set as one bowled in Tokyo.

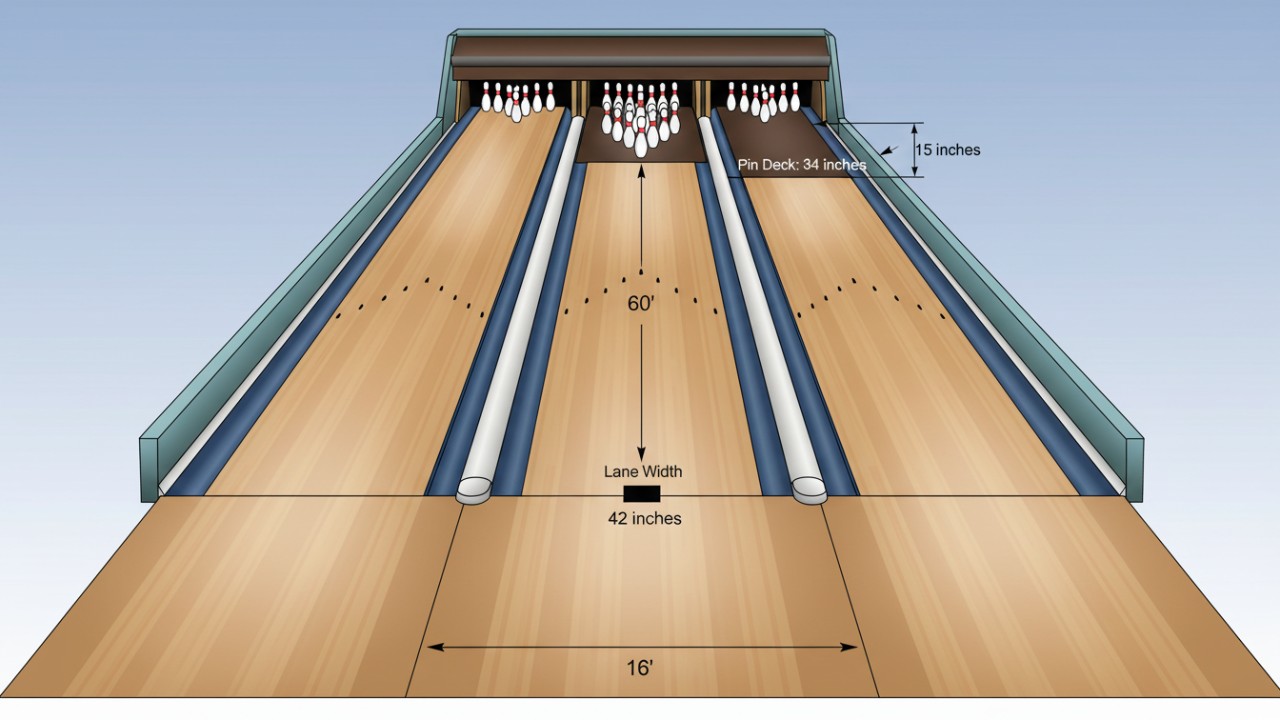

Detailed Breakdown of Lane Dimensions

To truly understand standard bowling lane dimensions, we must dissect the lane into its four distinct zones: the Approach, the Lane Surface, the Pin Deck, and the Pit Area.

The Approach Area: The standard 15-foot minimum requirement

The game begins long before the ball crosses the foul line. The bowling approach length is critical for player biomechanics. This is the area where the bowler generates kinetic energy through their four or five-step delivery.

• Minimum Length: USBC standards require a clear approach area of at least 15 feet (4.57 meters).
• Recommended Length: most modern commercial centers and competitive venues extend this to 16 feet to accommodate taller bowlers with longer strides.
• Surface Consistency: The approach must be perfectly flat and possess a specific coefficient of friction. It must allow for the "slide" step without being slippery enough to cause falls. The transition from the approach to the lane is marked by the foul line, which is between 3/8 and 1 inch wide.

The Lane Surface: From foul line to pin deck

The 60-foot journey from the foul line to the head pin is often divided into three conceptual sections, derived from the days of wood lanes:

1. The Heads (0–20 ft): Historically made of hard rock maple to withstand the impact of the ball landing. This is where the arrows are located.
2. The Pines (20–45 ft): Historically softer pine wood. This is the mid-lane area where the ball should begin to read the friction.
3. The Backend (45–60 ft): The final 15 feet where the oil pattern usually tapers off, allowing the ball to generate friction and hook into the pocket.

Today, most lanes are synthetic (simulating these wood properties), but the dimensions remain constant. The surface must be free of grooves or depressions that could alter the ball's path.

The Pin Deck and Pin Area: Where the machine operates

Beyond the 60-foot mark lies the pin deck. This is the durable area where the ten pins stand.

• Pin Deck Length: The pin deck extends from the center of the head pin to the back edge of the lane, adding approximately 34 3/16 inches (approx. 2.8 feet) to the lane's physical length.
• Material: It must be constructed of high-impact material (often synthetic or hard maple) to withstand the violent collisions of heavy pins flying at high velocities.

Total Construction Length: Why you need roughly 85-100 feet of real estate

If you are an architect or a homeowner installing a lane, you must account for the "invisible" infrastructure.

1. Pinsetter Chassis: The machines that reset the pins (whether traditional free-fall or modern string pinsetters) sit behind the pin deck. They require 4 to 6 feet of depth.
2. Service Aisle: A maintenance walkway behind the machines is essential for mechanics to load pins and fix jams safely. This requires another 2 to 4 feet.
3. Seating: In front of the approach, you generally need space for the ball return hood, scoring monitors, and seating, adding another 10+ feet.

Therefore, the realistic space required for a single regulation lane installation is between 85 and 100 feet in total length.

Bowling Lane Width and Gutter Specs

While length dictates timing and hook potential, width dictates accuracy. The margin for error in bowling is surprisingly small, defined strictly by the USBC bowling lane specifications.

Standard lane width: 41.5 inches (approx. 1.05 meters)

A regulation bowling lane is 41.5 inches wide (with a tolerance of ±½ inch). This specific width creates the geometric challenge of the sport. Considering a bowling ball is roughly 8.5 inches wide, there is limited room for error when angling for the "pocket" (the space between the 1 and 3 pins for right-handers).

Gutter dimensions and depth

The channels, commonly known as gutters, flank the lane on both sides.

• Width: Each gutter is typically 9 to 9.5 inches wide.
• Depth: They are recessed below the lane surface. At the foul line, the gutter is about 3.5 inches deep, gradually getting shallower as it approaches the pin deck to roughly 1 7/8 inches deep where the flat gutter connects to the lane. This slope ensures that balls entering the gutter travel toward the pit rather than bouncing back onto the lane.

Understanding the 39 board count and material composition

Professional bowlers do not just aim at "the arrows"; they aim at specific "boards." A standard lane consists of 39 wooden or synthetic strips (boards).

• Board 1: The board closest to the gutter on the right (for right-handers).
• Board 20: The center of the lane.
• Board 39: The board closest to the left gutter.

Understanding board numbers is vital for executing the "Rule of 31" (a mathematical formula used to determine where the ball should exit the oil pattern). Modern synthetic lanes often print these board lines visually to mimic the traditional maple and pine construction.

Key Markings and Distance Targeting

The lane is equipped with a navigational system of dots and arrows. These markers are fixed at specific distances from the foul line to aid in targeting.

The Foul Line: Rules and distance measurements

The foul line is the absolute zero point. It is a black line, usually between 3/8 to 1 inch wide. If any part of the bowler's body touches or crosses this line during delivery, the delivery counts as zero. In competitive play, infrared sensors detect these violations instantly.

The Dots (7ft and 12-15ft marks) for approach timing

On the approach area and the very beginning of the lane, you will find two sets of guide dots:

1. Approach Dots: Located 12 to 15 feet behind the foul line. These help bowlers set their starting stance.
2. Foul Line Dots: Located just inches before the foul line.
3. Lane Dots: Located 7 to 8 feet past the foul line on the lane surface. These are rarely used for aiming but help verify the ball's trajectory immediately after release.

The Target Arrows: Located 15 feet past the foul line for aiming

The most critical visual aid is the set of seven arrows arranged in a triangular formation.

• Location: The center arrow is located exactly 15 feet past the foul line.
• Purpose: Because the pins are 60 feet away, aiming directly at them is difficult due to parallax error. Professional bowlers use these arrows as intermediate targets to increase accuracy. The arrows correspond to specific boards (e.g., the second arrow from the right is on the 10th board).

How professionals use distance markers to calculate entry angles

Elite players use the geometry of the 15-foot arrows and the 60-foot pin deck to calculate "entry angle." To carry all ten pins consistently, the ball needs to enter the pocket at an angle of approximately 6 degrees. By tracing a line from the approach dots through the target arrows to the "breakpoint" downlane, bowlers create a triangulation system that makes the 60-foot distance manageable.

Does Lane Length Ever Change? (Oil Patterns & Variations)

Physically, a regulation lane is static. However, the effective length of the lane changes based on invisible factors.

Perceived length: How oil patterns make a lane play 'short' or 'long'

While the distance from foul line to head pin is always 60 feet, the application of lane conditioner (oil) changes how the lane plays.

• Short Patterns (32-35 feet): Oil is applied only to the first 35 feet. The ball encounters friction early, hooking sooner. This makes the lane feel "short."
• Long Patterns (42-48 feet): Oil is applied deep down the lane. The ball skids further before hooking. This makes the lane feel "long."

Bowlers must adjust their bowling approach length, speed, and rotation to match these "invisible dimensions."

Tolerance standards: Acceptable USBC maintenance deviations

USBC certification involves strict topography checks. Lanes can shift due to humidity and temperature (especially wood lanes).

• Length Tolerance: ± ½ inch.
• Cross-Tilt: Max 0.040 inches.
• Lengthwise Tilt: Max 0.040 inches.
  If a center fails these checks, they lose their certification for league and tournament play.

Dimensions for Duckpin, Candlepin, and Nine-pin variations

It is worth noting that while Ten-pin is the standard, other variants exist:

• Duckpin & Candlepin: The lane length (60 feet) is generally the same as Ten-pin to maintain consistency in facility construction, though the pins and balls are smaller.
• Nine-pin (Kegel): Popular in Europe and Texas, the dimensions are similar, but the pin deck setup is diamond-shaped rather than triangular.

For a deeper dive into the history and variations of the sport, general resources like Wikipedia's Bowling entry offer a broad overview of how these dimensions evolved over centuries.

Conclusion

While the golden number for a bowling lane is 60 feet from the foul line to the head pin, the true anatomy of a bowling alley is far more complex. From the 15-foot approach area to the mechanics behind the pin deck, understanding these official USBC dimensions is crucial for both facility construction and improving your game strategy. Whether you are aiming for the arrows or adjusting your slide on the approach, every inch of the regulation standard impacts your score.

Planning Your Installation?

Planning to install a home alley or upgrade your commercial facility? Contact us today for precision bowling lane installation and maintenance services. We ensure every inch of your project meets strict USBC standards for optimal performance and durability.

FAQ

What is the exact length of a bowling lane from foul line to pins?
According to USBC standards, the regulation distance from the foul line to the center of the head pin (No. 1 pin) is exactly 60 feet (18.29 meters).

How long is the approach area in bowling?
The approach area, where the bowler takes their steps before delivering the ball, must be at least 15 feet (4.57 meters) long according to standard regulations.

How wide is a standard bowling lane?
A regulation bowling lane is roughly 41.5 inches wide, typically consisting of 39 to 40 individual wooden or synthetic boards.

What is the total length needed to build a bowling lane?
While the lane itself is 60 feet, you typically need a total space of 85 to 100 feet to accommodate the approach area, the lane, the pinsetter machines, and a service aisle behind the machines.

Do oil patterns change the physical length of the lane?
No, the physical dimensions remain constant. However, the length of the oil pattern (e.g., 35 feet vs. 45 feet) affects friction, making the lane 'feel' shorter or longer based on when the ball begins to hook.
